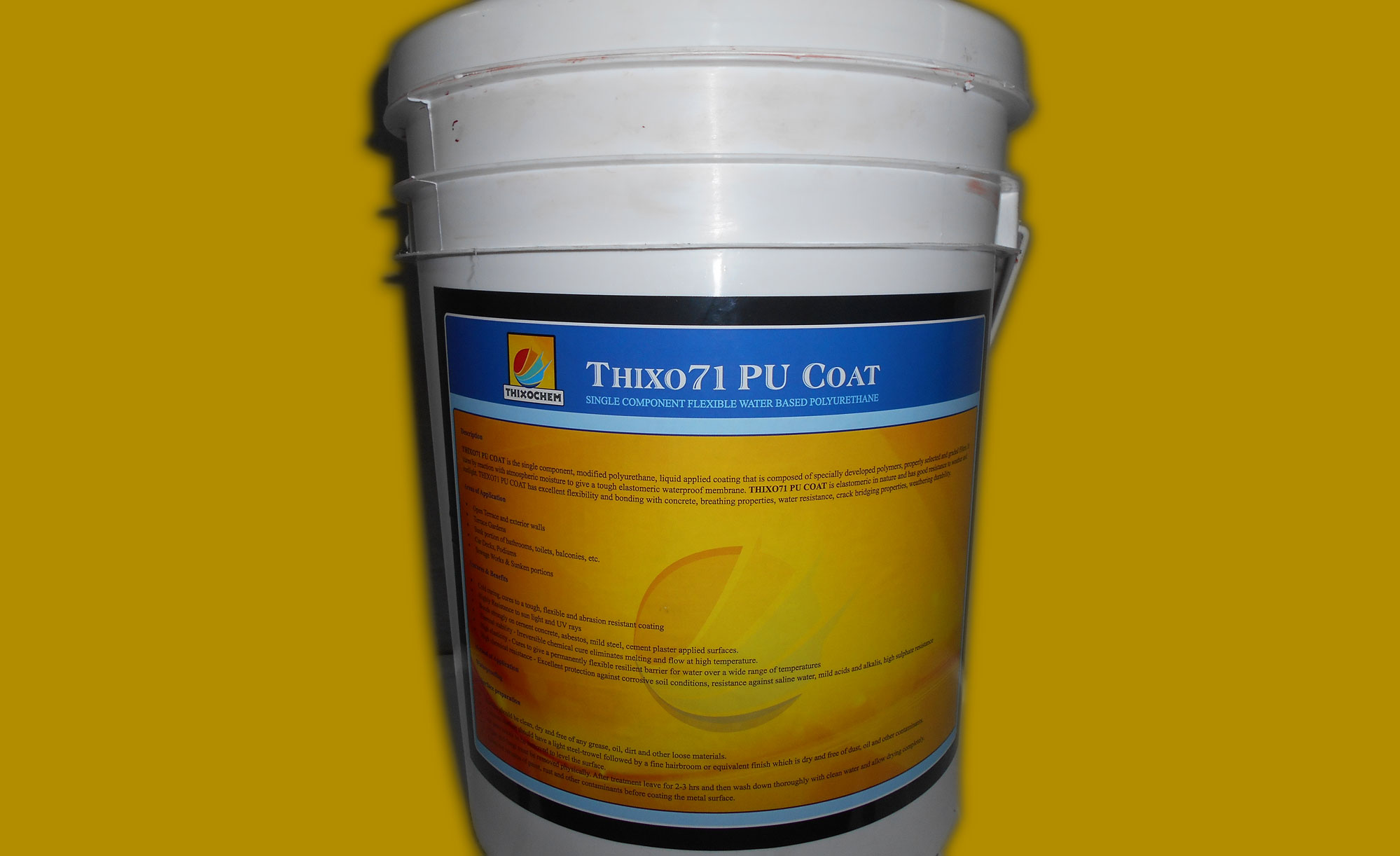

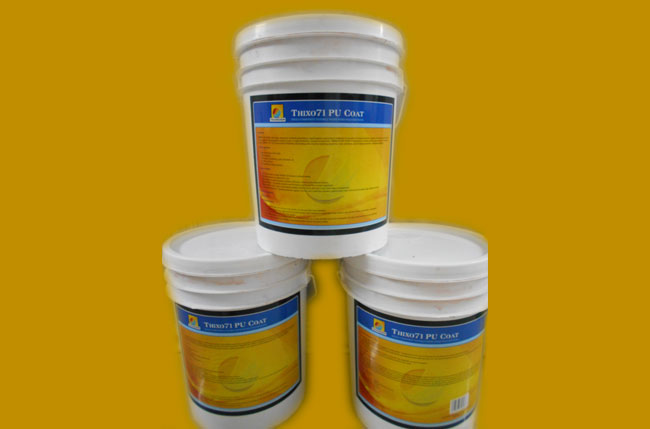

THIXO 71 PU COAT

"SINGLE COMPONENT FLEXIBLE WATER BASED POLYURETHANE"

THIXO 71 PU COAT is the single component, modified polyurethane, liquid applied coating that is composed of specially developed polymers, properly selected and graded fillers. It cures by reaction with atmospheric moisture to give a tough elastomeric waterproof membrane. THIXO71 PU COAT is elastomeric in nature and has good resistance to weather and sunlight. THIXO71 PU COAT has excellent flexibility and bonding with concrete, breathing properties, water resistance, crack bridging properties, weathering durability.

Areas of Application

Open Terrace, any Open Surfaces
Foundations, Basements & lift pits
Terrace Gardens
Sunk portion of bathrooms, toilets, balconies, etc.
Car Decks, Podiums
Sewage Works & Sunken Portions

Features & Benefits

Cold curing, cures to a tough, flexible and abrasion resistant coating
Highly Resistance to sun light and UV rays
Bonds strongly on cement concrete, asbestos, mild steel, cement plaster applied surfaces.
Thermal stability – Irreversible chemical cure eliminates melting and flow at high temperature.
High elasticity - Cures to give a permanently flexible resilient barrier for water over a wide range of temperatures
High chemical resistance – Excellent protection against corrosive soil conditions, resistance against saline water, mild acids and alkalis, high sulphate resistance

Method of Application in Waterproofing

Surface preparation :

Surface should be clean, dry and free of any lataince, grease, oil, dirt and other loose materials.
Concrete surface should have a light steel-trowel followed by a fine hairbroom or equivalent finish which is dry and free of dust, oil and other contaminants. All protrusions to be removed to level the surface.
Algae and fungi must be removed physically. After treatment leave for 2-3 hrs and then wash down thoroughly with clean water and allow drying completely.
Clean the remains of paint, rust and other contaminants before coating the metal surface.

As a Waterproofing Coating :

THIXO71 PU COAT should be applied by Airless Spray , brush/trowel in two coats maintaining the spreading rate to achieve the desired thickness .
In critical applications where film thickness is paramount and desired than the stated one then two coats should be applied with quantities per coat gauged to give the specified final film thickness.
On a vertical surface if high film build up is desirable then additional coat may be required.
If a water ponding test is to be run, the membrane should be fully cured

Technical Information and Security

PARAMETERS	TEST VALUE	METHOD
Appearance	White but Tintable	Visual
Consistency	5-10 % Portable water	ASTM 101
Volatile organic Matter (VOC) %,(W/W)	<0.8%	ASTM 101
Solid Content	73±2	ASTM STD TEST
Elongation	520%±40	ASTM D 412
Abrasion / Hardness	High	ASTMD240:2002
Recoating Time, at 27^oC, 65% RH, HOURS	03-04 hours	ASTM 101
Thickness	900Microns +=200 wet film thickness	ASTM D 1640
Crack Bridging ability	No crack at 2mm gap	ASTM D2240:91
Full Cure	2 Days	ASTM 101
Accelerated weather resistance	Passes the test	ASTMG154
Adhesive Strength	3.2 N/mm ²	ASTM D3359
Water Penetration Test @ 3 bar	No Penetration	DIN1048:PT5:91
Volatile organic Matter (VOC) %,(W/W)	<0.8%	ASTM 101
Algae & Fungus Resistant	High (No Growth)	(ss 345:1998)
SRI (White Base)	125±5	ASTM E1980

Covering Capacity :

Thixochem Elasto coat will give following coverage in below mentioned surface.
Coverage will vary based on surface, Application type and workmanship.
Adding more water may give more coverage but definitely affect the quality.
To achieve desired thickness along with good coverage better use appropriate level of water i.e. Not more than 5-10% of the Thixochem Elasto coat volume.

SURFACE	COVERAGE/KG
TILES	2-2.2 S.QM FOR TWO COATS
CEMENT FLOOR	1.7-2 S.QM FOR TWO COATS
VERTICAL WALL	2-2.3 S.QM FOR TWO COATS
